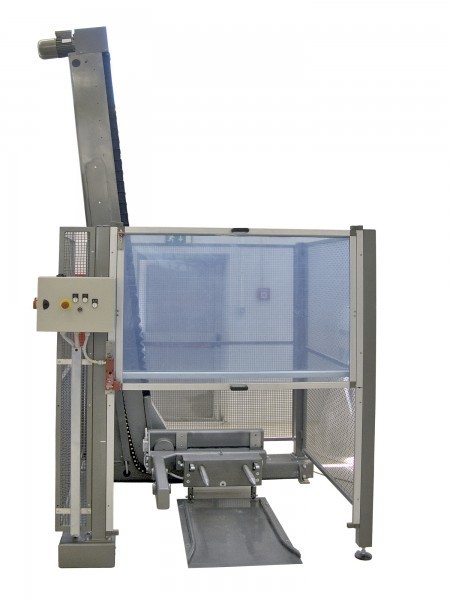

Bowl lifting and tilting device DP 10

Bowl lifting and tilting device DP 10

The bowl lifting and tilting device DP 10 are designed for lifting and discharging removable bowls of all types of dough mixers.

The DP 10 model has the discharging height, which can be adapted completely to the desired level. Both lifting and tilting devices allow the possibility of adapting the driving direction and bowl tilting direction and device equipment. The lifting and tilting device DP 10 can be modified into a movable version.


A carefully designed construction solution assures optimal exploitation of space in the bakery and the possibility of lifting different types of trolleys with the bowl.

Possibility of bowl lifting and discharging at different heights.

Bowl tilting to different directions.

Lifting is performed through a screw spindle and a moving nut, assuring safe functioning, long life span and minimal maintenance operations.

Different options available for various versions of the device.

The DP 10 model does not require any construction works for its installation, only a level foundation.

Technological and technical characteristics

Device DP 10 DP 10 PKS with transportable bowl and scraper
Load capacity (kg) 1000 1000
Discharging heigh (mm) 1250 - 2900 1250 - 2900
Installed power (kW) 1,5 2,1
Device dimensions (mm)
(L X W X H)
1940x2790x3960 1940x2790x3960
Device weight (kg) 1500 1600

Basic version of the DP 10 model includes

  • lifting device with bowl support for a single size of trolleys with bowl
  • safety ring

Options for DP 10

  • bowl drive and scraper
  • safety cage (manual lifting)
  • safety cage (automatic lifting)
