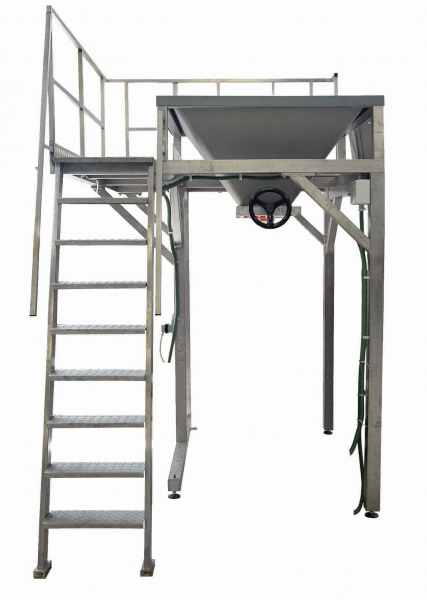

Hopper for dough LS


Hopper for dough LS

The hopper is designed for constant dough dosing into the dough divider’s hopper.

The ceiling hooper with frame typ LS assures constant dough dosing when dividing the dough into smaller portions through the roof into the dough divider's hopper. There is a dosing flap mounted on the bottom of the hopper, which assures a controlled dosing of dough into the divider's hopper. The dosing flap can be regulated manually (R version) or by a pneumatic cylinder (P version).



Advantages


The hopper is accessible by a ladder, while the platform mounted on the LP model makes its
cleaning even easier.

The inside of the hopper can be Teflon coated,on request it can be equipped even with an oil
spraying system (for sticky dough).

In case of an automatic production plant a system of sensors and switches controls the level of dough
in the dough divider's hopper and regulates the hopper's dosing flap accordingly.

Possibility of choosing the hopper according to technological line.

Technological and technical characteristics


Adaptation to customer's requirements.

Basic version of device LS includes


  • stainless steel hopper
  • pneumatic cylinder driven flap
  • twp photo-sensors for dough level in the dough
    divider's hopper
  • safety fence

Options for LS


  • Teflon coated hopper
