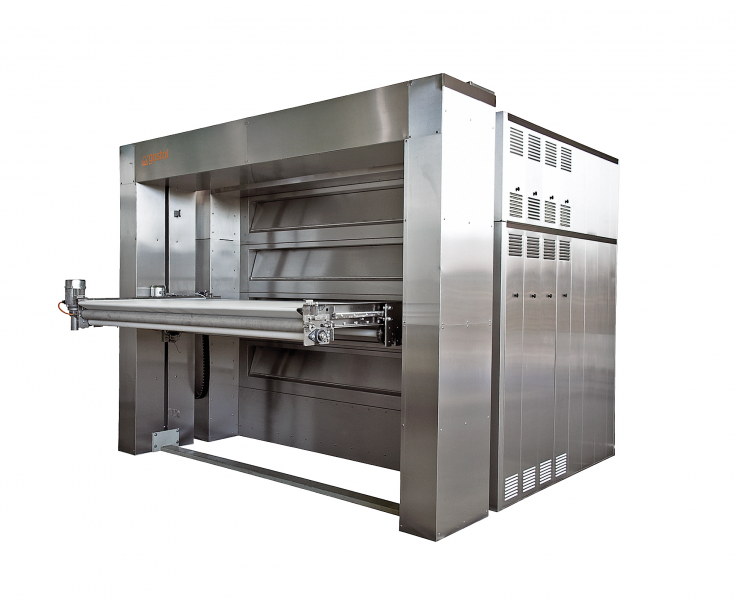

The thermo-oil multi-deck tunnel oven TRIGLAV is an universal baking oven designed to bake all types of bread and pastry, i.e. free-baked products and those baked on trays or in pans.

The TRIGLAV oven is suitable especially for bakeries with high production outputs and/or large product assortments, as well as for any bakery seeking high final product quality and at the same time keeping a vigil eye on energy efficiency.

The multi-deck construction allows the oven to be placed even in bakeries with considerable space constraints, allowing the bakery to save precious space.

The unique TRIGLAV's construction allows it to work either in batch or continuous-step mode, while the (abundantly isolated) floating-decks concept gives the oven a remarkable flexibility of use.

Advantages


Higher production capacities can be reached on the same bakery footprint.

Efficient and at the same time gentle transfer of heat onto the product, giving the product a considerably higher quality and allowing it to retain its freshness for a longer period of time.

Lower consumption of energy and cleaner environment.

Equal baking conditions in the baking chamber both length and width-wise (special counterflow heat exchangers).

Exceptional flexibility, allowing the baker to bake different products with various baking regimes even on neighbouring decks.

More accurate and flexible baking temperature regulation, eventually in every single baking deck, both by length and height of the deck, allowing the baker to adapt completely the baking regime to the product being baked, be it bread, pastry or tin bread.

Automatic loading and unloading of individual baking decks with the possibility of charging the oven at the same time with products arriving from various processing lines, and/ or discharging baked products towards various directions for further processing needs.

Easy and simple maintenance operations.

Complete automatisation of the baking process, allowing quick passages between different products on the same baking deck.

Accurate guiding of the conveyor belt.

High reliability, easy maintenance, silent operation and long life-time of the heating plant.

Technical data


Number of decs  1   2   3   4   5   6   7   8   9
Length/width(m) 2 2,5 3 2 2,5 3 2 2,5 3 2 2,5 3 2 2,5 3 2 2,5 3 2 2,5 3 2 2,5 3 2 2,5 3
4,8 10 12 14 19 24 29 29 36 43 38 48 58 48 60 72 58 72 86 67 84 101 77 96 115 86 108 130
6  12 15 18 24 30 36 36  45 54 48 60 72 60 75 90 72 90 108 84 105 126 96 120 144 108 135 162
7,2  14 18 22 29 36 43 43 54 65 58 72 86 72 90 108 86 108 130 101 126 151 115 144 173 130 162 194
8,4  17 21  25  34   42  50 50  63  76  67  84  101  84  105  126  101   126 151 118  147   176 134  168  202  151  189  227
9,6 19  24  29  38  48  58  58  72  86  77  96  115  96  120  144  115  144  173  134  168  202  154  192  230  173  216  259
10,8 22  27  31  43  54  65  65  81  97  86  108  130  108  135  162  130  162  194  151  189  227  173  216  259  194  243  292
12 24  30  36  48  60  72  72  90  108  96  120  144  120  150  180  144  180  216  168  210  252  192  240  288  216  270  324
13,2 26  33  40  53  66  79  79  99  119  106  132  158  132  165  198  158  198  238  185  231  277  211  264  317  238  297  356
14,4 29  36  43  58  72  86  86  108  130  115  144  173  144  180  216  173  216  259  202  252  302  230  288  346  259  324  389
15,6 31  39  47  62  78  94  94  117  140  125  156  187  156  195  234  187  234  281  218  273  328  250  312  374  281  351  421
16,8 34  42  50  67  84  101  101  126  151  134  168  202  168  210  252  202  252  302  235  294  353  269  336  403  302  378  454
18 36  45  54  72  90  108  108  135  162  144  180  216  180  225  270  216  270  324  252  315  378  288  360  432  324  405  486
19,2 38  48  58  77  96  115  115  144  173  154  192  230  192  240  288  230  288  346  269  336  403  307  384  461  346  432  518
20,4 41  51  61  82  102  122  122  153  184 163  204  245  204  255  306  245  306  367  286  357  428  326  408  490  367  459  551
21,6 43  54  65  86  108  130  130  162  194  173  216  259  216  270  324  259  324  389  302  378  454  346  432  518  389  486  583
22,8 46  57  68  91  114   137 137  171  205 182  228  274   228 285  342  274  342  410  319  399  479  365  456  547  410  513  616
24 48  60  72  96  120  144  144  180  216  192  240  288  240  300  360  288  360  432  336  420  504   384 480  576  432  540  648



Thermo-oil multi-deck tunnel oven types

   Nr. of windows  Nr. of temperature zones  Nr. of steam inlet  Max. nr. of secundar regulations
Possible option Recomended option Possible option Recomended option  Possible option Recomended option
4,8  1  1  1  1
6
7,2 (1-2)  12
8,4 (1-2) 16
9,6 (1-2) (1-3) (2-3) 20
10,8 (1-2) (2-3) (2-3) 24
12 (1-2)  (2-3) 28
13,2 (1-3)  (2-3) 32
14,4  (1-3)  (2-3) 36
15,6  (1-3)  (2-3) 40
16,8  (1-3)  (2-3) 44
18  (1-3)  (2-4) 48
19,2  (1-3)  (2-4)  52
20,4  (1-3)  (2-4)  56
21,6  (1-4) (2-4)  60
22,8  (1-4) (2-4)  64
24  (1-4) (2-4)  4 68
